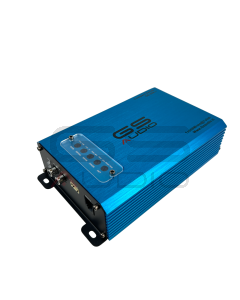

GS AUDIO COMPACT SQ GS-550.1CMP - 1*550Wrms @1ohm

Name: GS AUDIO COMPACT SQ GS-550.1CMP - 1*550Wrms @1ohm
Brand: GS AUDIO
SKU: GS 1.550CMP
Price: 118.15 EUR
Availability: InStock

Special Price €118.15 €96.84 -15% Regular Price €139.00

In stock

SKU

GS 1.550CMP

Shipping time: Ready within 24 hours

Spedisci a: / Ship to:

Calcola / Ceck Shipping Cost

Qty

Add to Compare

GS AUDIO COMPACT SQ GS-550.1CMP - 1*550Wrms @1ohm is available to buy in increments of 1

Details

GS AUDIO COMPACT SQ GS-550.1CMP - 1*550WRMS @1ohm

The new line of Gs Audio Compact Sound Quality series amplifiers are the evolution of the previous Sound Quality series.

These latest generation class D amplifiers thanks to new integrated circuits are able to offer excellent timbre and sound clarity, in addition new IGBT Power Transistors with low thermal dissipation have allowed to reduce the chassis in weight and size offering similar overall dimensions to "Brazilian" amplifiersbut superior control over the speaker.

Due precisely to the sound qualities, a smaller size than the preceding GS Sound Quality series we named this series SQ Compact (Sound quality compact).

All 3 models currently available, the 4-channel model 190.4 full range, the mono channel low frequency 550.1 and the two-channel model 280.2 full range, have RCA and high level inputs that allow them to be perfectly matched even to audio system with standard car stereo.

Audio adjustments are arranged frontally instead of sideways for easier access in case of installation in places with poor lighting and visibility.

As you can see from the internal photos these amplifiers have nothing to do with modern Brazilian digital, round toroids instead of square and large capacitors in addition to vertically placed control boards help to minimize background noise and disturbances, polyester capacitors at the input and output filter out any hum from the power supply, and to complete the power terminal blocks are sized to accommodate a cable up to 35mmq!

GS 550.1CMP model powers:

1*550Wrms @ 1 ohm

1*370Wrms @ 2 ohms

1*250Wrms @ 4 ohms

For those using the amplifier with internal active filters without a processor, here are the frequency cutoffs:

LPF: 50hz to 250Hz (cannot be turned off, amplifier not full range, max 250hz)

Subsonic: 0hz to 50Hz

bass boost from 0dB to 12dB

Phase: 0 to 180 degrees

Remote control included for remote gain control

The amplifier comes complete with screws, allen wrenches, stickers.

The complete installation manual is not included in the box but can be downloaded at the links below
