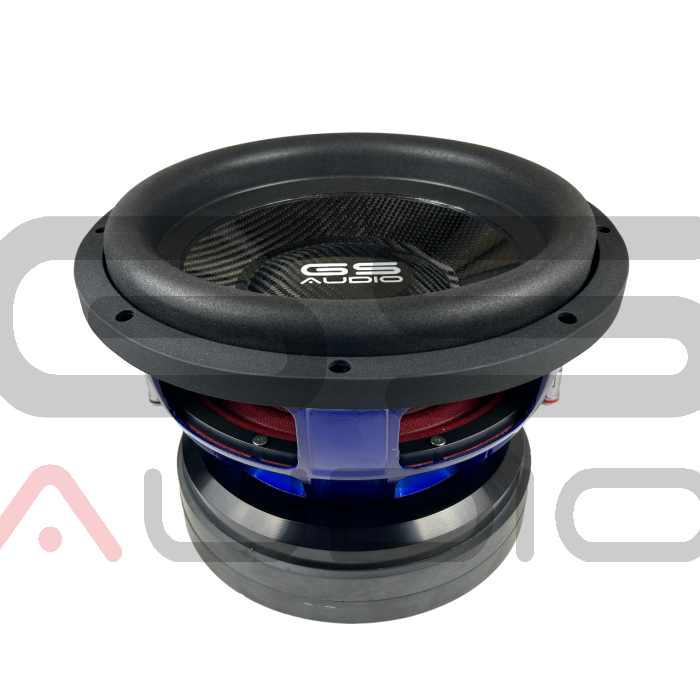

Gs Audio Gold 10000 - 12"/30cm - 5000Wrms - D0.7 or D1 or D2 ohm

Gs Audio GOLD 10000 - 12"/30cm Subwoofer - 5000WRMS / 10000 W max

Handcrafted in our Italian headquarters, the subwoofers are also customizable upon request.

The main transformation was made on magnet, now the magnetic assembly consists of a 225mm double ferrite ring and "ufo" polar plates.

A new 8-layer coil with CCAW copper-plated aluminum winding and the carbon-kevlar cone, together allowed to reach a power output of 5000 WRMS.

This specific structure made it possible to greatly improve power handling, ventilation and cooling of the voice coil, as well as giving an extremely modern and unique aesthetic look!

The spiders, made of 100% nomex with an innovative quad-layer design and sewn directly in our Italian facility, offer an ideal balance of lightness, rigidity and efficiency. In addition, sewn tinsels minimize annoying noise and vibration during maximum excursions.

All versions are equipped with a 30/32 cm foam suspension and a carbon-kevlar sandwich cone. This cone is designed specifically for competition and musical performance, demonstrating exceptional resistance to any kind of pressure. It has been tested on extreme vehicles, reaching over 185 dB without any bending.

At the end, we installed a carbon dust cover that not only further increases the rigidity of the already extremely strong cone, but also acts as a heat sink. Due to the heat-conducting properties of carbon, this material absorbs the heat generated by the coil, helping to dissipate it from the front of the cone as well.

************************************************************

This subwoofer is available in 0.7, dual 0.7, dual 1 and 2 Ohm coils.

Their resonant frequency (Fs) makes them perfect for audio competitions, but we also recommend them for those who want to have fun every day playing different genres of music at different powers and pressures.

Inside the data sheet you will find an example of an ideal box. For lovers of techno and music genres with high beats, we suggest slightly reducing the width of the recommended boxes by about 5 cm. This expedient makes the speaker more responsive and raises the tuning of the box by about 2-3 Hz.

With 5000Wrms power, we recommend matching it with one of our 3500 to 8500Wrms amplifiers.

In addition, we would like to emphasize that for all Gs Audio speakers and subwoofers, built in our Italian facility, we offer not only the standard retuning kit, but also custom kits according to your needs. We have coils, spiders, cones and every component needed to repair the subwoofer or speaker, without the need to buy a new product in case of problems or breakage.
