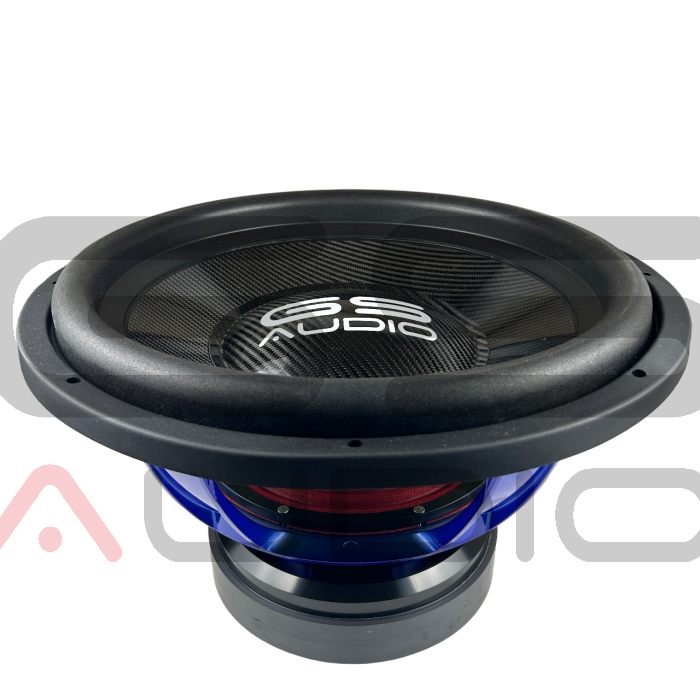

Gs Audio Gold 10000 - 18"/46cm - 5000Wrms - D0.7 or D1 or D2 ohm

Gs Audio GOLD 10000 - 18"/46cm Subwoofer - 5000WRMS / 10000 W MAX

Check out the detailed data sheet further down the page

The GOLD series was introduced in 2024 as evolution of the SILVER 6500 and GOLD SPL series. Available in 12"/30 cm, 15"/38 cm, 18"/46 cm and 21"/54 cm sizes, each product is handcrafted in our workshop and can be customized upon request.

What is new is the magnetic assembly, now consisting of a 225 mm double ferrite ring and "ufo" polar plates. The Subwoofer reaches a power of 5000 WRMS thanks to the new 8-layer coil with CCAW copper-plated aluminum winding and the carbon-kevlar cone. A structure that enabled improved power handling, ventilation and voice coil cooling.

Other features:

• Spiders: 100% red nomex, quadruple layer, hand-sewn. They offer light weight, rigidity, efficiency, noise and vibration reduction due to tinsel stitching;

• 30/32 cmfoam suspension;

• Carbon Kevlar sandwichcone. Designed for competition and musical performance. Has exceptional resistance to any kind of pressure (tested on extreme vehicles over 185dB);

• Carbon dust cover. Increases cone rigidity and dissipates heat generated by the coil.

************************************************************

This subwoofer is available in 0.7, dual 0.7, dual 1 and 2 Ohm coils.

Perfect for competitions and daily use, they offer 5000 Wrms (up to 10000 W max). Data sheet includes an ideal box; for high tempo genres, reducing the box width by 2 inches improves responsiveness and 2-3 Hz tuning. Standard and customizable retuning kits available, as well as spare parts. With a power rating of 5000 Wrms (up to 10000 W max), use with amplifiers between 3500 and 8500 Wrms is recommended.

************************************************************

DOWNLOADABLE DATA SHEETS:

PDF SHEET ITALIANO -ENGLISH PDF SHEET
